5530843-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5530843-1
Datasheet:
Description:

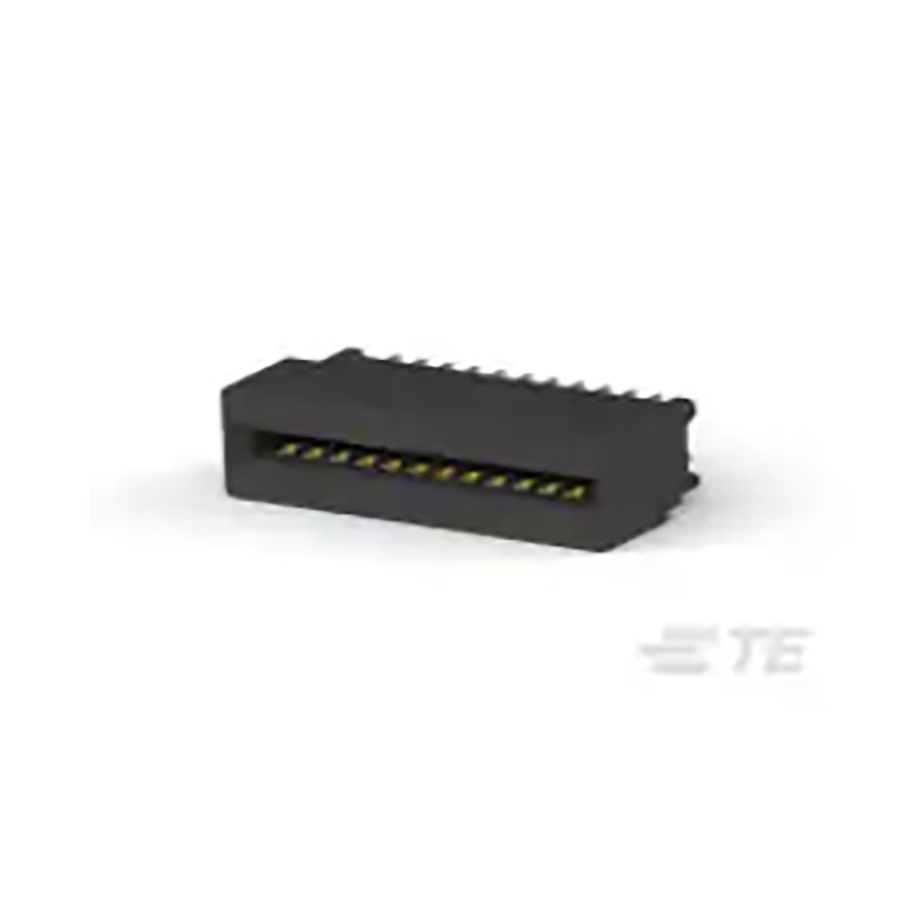

Edgeboard Connectors Through Hole Female Vertical Number of Positions:24
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 15.494 mm |
| Packaging | Bulk |
| Voltage Rating | 400 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 400 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 24 |
| ELV | Compliant |
| Connector Type | Socket |
| Contact Type | |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 4.85 mm |
| Insulation Material | Glass |
| Card Thickness | 1.37 mm to 1.78 mm |
| Housing Material | Polyester |
| Circuit Application | Power |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 760 nm |
| Number of Power Positions | 24 |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mounting Angle | Vertical |
| Card Type | Dual Edge |
Stock: 368
Distributors
pcbx
pcbxUnit Price$1.53282
Ext.Price$1.53282
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53282 | $1.53282 |
| 10 | $1.30259 | $13.02590 |
| 25 | $1.22075 | $30.51875 |
| 50 | $1.16255 | $58.12750 |
| 100 | $1.10694 | $110.69400 |
| 300 | $1.02438 | $307.31400 |
| 500 | $0.94798 | $473.99000 |
| 1000 | $0.87728 | $877.28000 |
